توضیحات

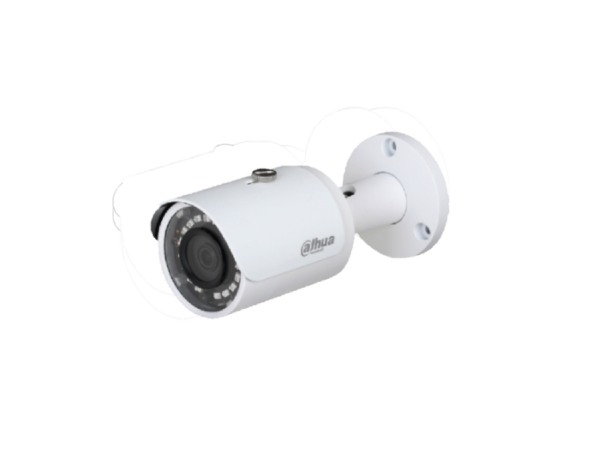

دوربین مدار بسته IPC-HFW1230S یک دوربین مینی بالت از شرکت داهوا می باشد این دوربین دو مگاپیکسلی کیفیت تصویر و دی در شب آی آر تا فاصله ۳۰ متری در روز و شب کیفیت تصویر مناسبی را برای منازل و مکان های کوچک فراهم میکند.
محافظت دوربین مدار بسته IPC-HFW1230S در برابر آب و ضربه امکان نصب این دوربین را در فضای آزاد نیز راهم میکند.
این دوربین قابل سفارش در سایت داهوا و یا با شماره تماس ۰۹۰۲۵۵۵۵۹۲۹ می باشد.
کاربردهای دوربین مدار بسته IPC-HFW1230S
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.
Intelligent Video Analysis (IVS)
Dahua camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance.
Smart IR Technology
With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts the intensity of camera’s infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera’s integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).
Protection (IP67, wide voltage)
The camera allows for ±۲۵% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments.
Environmental
Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity.
Image Flip
Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera’s image to be rotated in 90° increments for better video optimization.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.
مشخصات دوربین مدار بسته IPC-HFW1230S
Camera
Image Sensor
۱/۲.۷” ۲Megapixel progresive CMOS
Effective Pixels
۱۹۲۰(H) x1080(V)
RAM/ROM
۲۵۶MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
۰.۰۸Lux/F2.0( Color,1/3s,30IRE)
۰.۳Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
۱۸
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
۲.۸ mm (3.6 mm optional)
Max. Aperture
F2.0/F2.0
Angle of View
H:104°/۹۲°,V:55°/۵۰°
Focus Control
Fixed
Close Focus Distance
۰.۶m(0.9m)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
۲.۸ mm
۴۰(۱۳۱ft)
۱۶(۵۲ft)
۸(۲۶ft)
۴(۱۳ft)
۳.۶ mm
۵۳(۱۷۴ft)
۲۱(۶۹ft)
۱۱(۳۶ft)
۵(۱۶ft)
PTZ
Pan/Tilt Range
Pan:0° ~۳۶۰° ;Tilt:0° ~۹۰° ;Rotation:0° ~۳۶۰°
Intelligence
Event Trigger
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS
Tripwire, Intrusion
Video
Compression
H.265/H.264H/MJPEG(Sub Stream)
Smart Codec
Support H.265+/H.264+
Streaming Capability
۲ Streams
Resolution
۱۰۸۰P(1920×۱۰۸۰)/۱.۳M(1280×۹۶۰)/
۷۲۰P(1280×۷۲۰)/D1(704×۵۷۶/۷۰۴×۴۸۰)/ VGA(640×۴۸۰)/CIF(352×۲۸۸/۳۵۲×۲۴۰)
Frame Rate
Main Stream: 1080P(1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps
Day/Night
Auto(ICR) / Color / B/W
BLC Mode
BLC / HLC / DWDR
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto/Manual
Noise Reduction
۳D DNR
Motion Detection
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Electronic Image
Support
Smart IR
Support
Digital Zoom
۱۶x
Flip
۰°/۹۰°/۱۸۰°/۲۷۰°
Mirror
Off / On
Privacy Masking
Off / On (4 Area, Rectangle)
Audio
Compression
N/A
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;
TLS
Interoperability
ONVIF Profile S&G, API
Streaming Method
Unicast / Multicast
Max. User Access
۱۰ Users / 20 Users
Edge Storage
NAS
Local PC for instant recording
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS, DMSS
Smart Phone
IOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface
N/A
Audio Interface
N/A
RS485
N/A
Alarm
N/A
Electrical
Power Supply
DC12V, PoE (802.3af)(Class 0)
Power Consumption
<5.5W
Operating Conditions
-۳۰° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions
-۳۰° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Construction
Casing
Metal+Plastic
Dimensions
Φ۷۰mm×۱۶۴.۷mm(2.76”x6.49”)
Net Weight
۰.۳۸Kg(0.84lb)
Gross Weight
۰.۴۴Kg(0.97lb)
