توضیحات

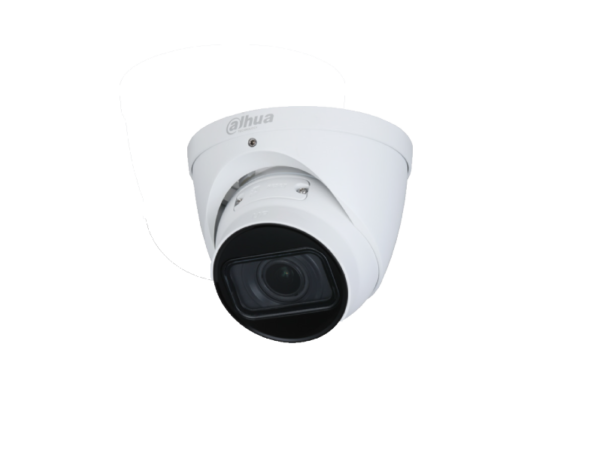

دوربین مداربسته IPC-HDW2231T-ZS-S2 با پشتیبانی از رمز گذاری H.265 در زمینه هوش مصنوعی از سری Lite شرکت داهوا می باشد که با قیمت بسیار مناسب قابل سفارش از سایت نمایندگی داهوا در کرمان می باشد.
این دوربین با کیفیت تصویر ۲ مگاپیسکلی خود و تصویر starlight در روز و شب تصویر خوب و مناسبی را برای مکان های کوچک و غیر حساس ایجاد میکند.
این دوربین مدار بسته با در اختیار داشتن آخرین تکنولوژی در زمینه رنگ تصویر کیفیت فوق العاده ای از تصویر را به ارمغان می آورد.
کاربردها دوربین مداربسته IPC-HDW2231T-ZS-S2:
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Starlight
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.
Lite Series | DH-IPC-HDW2231T-ZS-S2
IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±۳۰% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
مشخصات دوربین مداربسته IPC-HDW2231T-ZS-S2:
Image Sensor
۱/۲.۸″ CMOS
Max. Resolution
۱۹۲۰ (H) × ۱۰۸۰ (V)
ROM
۱۲۸ MB
RAM
۱۲۸ MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–۱/۱۰۰,۰۰۰ s
Min. Illumination
۰.۰۰۲ Lux@F1.6 (Color, 30 IRE)
۰.۰۰۰۲ Lux@F1.6 (B/W, 30 IRE)
۰ Lux (Illuminator on)
S/N Ratio
> 56 dB
Illumination Distance
۴۰ m (131.23 ft) (IR)
Illuminator On/Off Control
Auto; manual
Illuminator Number
۲ (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–۳۶۰°
Tilt: 0°–۷۸°
Rotation: 0°–۳۶۰°
Lens
Lens Type
Motorized vari-focal
Lens Mount
φ۱۴
Focal Length
۲.۷ mm–۱۳.۵ mm
Max. Aperture
F1.5
Field of View
Horizontal: 108°–۳۰°
Vertical: 56°–۱۷°
Diagonal: 131°–۳۵°
Iris Control
Fixed
Close Focus Distance
۰.۸ m (2.62 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
W
۴۴.۱ m (144.69 ft)
۱۷.۷ m (58.07 ft)
۸.۸ m
(۲۸.۸۷ ft)
۴.۴ m
(۱۴.۴۴ ft)
T
۱۴۴.۸ m (475.07 ft)
۵۷.۹ m (189.96 ft)
۲۹.۰ m (95.14 ft)
۱۴.۵ m (47.57 ft)
Smart Event
IVS
Tripwire; intrusion
Video
Video Compression
H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H.265+; Smart H.264+
Video Frame Rate
Main stream:
۱۹۲۰ × ۱۰۸۰@۱–۲۵/۳۰ fps
Sub stream:
۷۰۴ × ۵۷۶@۱–۲۵ fps
۷۰۴ × ۴۸۰@۱–۳۰ fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
۲ streams
Resolution
۱۰۸۰p (1920 × ۱۰۸۰); ۱.۳M (1280 × ۹۶۰); ۷۲۰p (1280 × ۷۲۰); D1 (704 × ۵۷۶/۷۰۴ × ۴۸۰); VGA (640 × ۴۸۰); CIF (352 × ۲۸۸/۳۵۲ × ۲۴۰)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–۶۱۴۴ kbps
H.265: 12 kbps–۶۱۴۴ kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
۱۲۰ dB
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto; manual
Noise Reduction
۳D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
۰°/۹۰°/۱۸۰°/۲۷۰° (Support 90°/۲۷۰° with 1080p resolution and lower)
Mirror
Yes
Privacy Masking
۴ areas
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; tripwire; intrusion; voltage detection; security exception
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host
۲۰ (Total bandwidth: 48 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
IOS; Android
Lite Series | DH-IPC-HDW2231T-ZS-S2
www.dahuasecurity.com
Rev 001.001
© ۲۰۲۱ Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Certification
Certifications
CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply
۱۲ V DC/PoE
Power Consumption
Basic: 1.9 W (12 V DC); 2.2 W (PoE)
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS + vari-focal); 5.5 W (12 V DC); 6.4 W (PoE)
Environment
Operating Temperature
–۳۰ °C to +60 °C (–۲۲ °F to +140 °F)
Operating Humidity
≤ ۹۵%
Storage Temperature
–۴۰ °C to +60 °C (–۴۰ °F to +140 °F)
Protection
IP67
Structure
Casing
Metal
Product Dimensions
۱۰۸.۳ mm × Φ۱۲۲ mm (4.3″ × Φ۴.۸″)
Net Weight
۰.۶۹ kg (1.5 lb)
Gross Weight
۰.۸۸ kg (1.9 lb)
