توضیحات

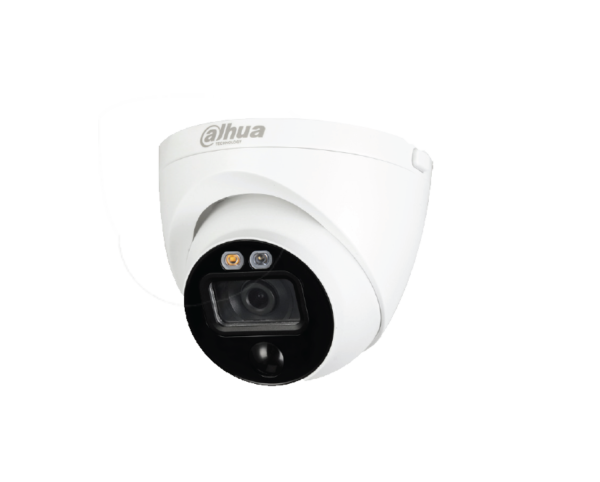

دوربین مداربسته داهوا ME1200E-LED از مدل دوربین هایی با قابلیت PIR میباشد که داخل یا خارج محیط های بسته میتوان از آن استفاده کرد. این قابلیت همانند چشم دزدگیرها نسبت به انواع حرکت ها حساس می باشد و هر حرکتی را آلارام گزارش میدهد و همین قابلیت این دوربین را برای افرادی که نیاز به دزدگیر دارند مناسب می سازد زیرا علاوه بر آلارم نیز افراد به راحتی میتوانند تصویر را نیز داشته باشند.
از دیگر نکات مثبت این دوربین نیز میتوان به LED بودن آن نیز اشاره کردکه باعث میشود این دوربین حتی در تاریکی مطلق نیز کاربرد داشته باشد و مورد استفاده قرار گیرد این دوربین همیشه در هنگام تاریکی با نوری که خود روشن میکند تاریکی را جبران کرد و تصویر رنگی و روشنی را در اختیار کاربران قرار میدهد.
دوربین مداربسته داهوا ME1200E-LED با بهره مندی از استاندارد IP67 از مقاومت بالایی نسبت به گرد و غبار و آب بهره مهند است که به کاربران این اطمینان را میدهد که حتی در محیط های باز میتوانند از آن استفاده کنند.
با توجه به تنوع و مدلهای مختلف شرکت داهودا و اطلاع از بقیه محصولات به سایت داهوا کرمان مراجعه کنید
قابلیت ها دوربین مداربسته داهوا ME1200E-LED
۴ Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700m transmission for 5MP HD video via coaxial cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua’s test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional ana-log system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.
Dual Detection
The detection accuracy is well guaranteed with both motion detection and PIR detection, which can eliminate the number of false alarms you receive. With the advantage of dual detection technology, your HDD will now last longer and not be recorded with false alarms. Gone are the days of alarms caused by heavy wind or rain. Instead, only true threats will instantly trigger an alarm and allow you to protect your loved ones.
Active Deterrence
Active deterrence is to warn off intruders actively with white light even before users are aware of the incidence. Once an intursion is detected, the white light will turn on to alert the intruder. The white light can be set to Normally on or Flash.
Smart IR
The camera is designed with array LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.
Protection
The camera’s outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67, making it suitable for indoor or outdoor environments.
With PIR working temperature range of -10 °C to +50 °C (14 °F to +122 °F), the MotionEye is designed for extreme temperature environments.
Supporting ±۳۰% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
www.dahuasecurity.com
· Max 30fps@1080P
· HD and SD output switchable
· ۲.۸mm/3.6mm fixed lens
· ۱۰m/110°detecting range/angle
· Max. IR length 20m, Smart IR
· IP67, DC12V
DH-HAC-ME1200E-LED
۲MP HDCVI Active Deterrence CameraDC 12V1080pPIRIP6720m IR
مشخصات فنیدوربین مداربسته داهوا ME1200E-LED
Camera
Image Sensor
۱/۲.۷″ CMOS
Effective Pixels
۱۹۲۰(H)×۱۰۸۰(V), 2MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination
۰.۰۲Lux/F2.0(Color), 30IRE, 0Lux IR on
S/N Ratio
More than 65dB
IR Distance
Up to 20m (66feet)
IR On/Off Control
Auto / Manual
IR LEDs
۱
Lens
Lens Type
Fixed lens / Fixed iris
Mount Type
Board-in
Focal Length
۲.۸mm (3.6mm Optional)
Max Aperture
F2.0
Angle of View
H: 112° (۸۸°)
V: 59° (۴۷°)
Focus Control
N/A
Close Focus Distance
۵۰۰mm(900mm)
۲۰”(۳۵”)
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
۲۵px/m
(۸px/ft)
۲.۸mm: 37m(122ft)
۳.۶mm: 53m(175ft)
Observe
۶۳px/m
(۱۹px/ft)
۲.۸mm: 15m(49ft)
۳.۶mm: 21m(70ft)
Recognize
۱۲۵px/m
(۳۸px/ft)
۲.۸mm: 8m(25ft)
۳.۶mm: 11m(35ft)
Identify
۲۵۰ppm
(۷۶px/ft)
۲.۸mm: 4m(12ft)
۳.۶mm: 5m(17ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ ۳۶۰°
Tilt: 0° ~ ۹۰°
Rotation: 0° ~ ۳۶۰°
Video
Resolution
۱۰۸۰P (1920×۱۰۸۰)
Frame Rate
۲۵/۳۰fps@1080P, 25/30fps@720P
Video Output
۱-channel BNC high definition video output / CVBS
video output (Can switch)
Day/Night
Auto (ICR) / Manual
OSD Menu
Multi-language
BLC Mode
BLC / HLC / DWDR
WDR
DWDR
Gain Control
AGC
Noise Reduction
۲D
White Balance
Auto / Manual
Smart IR
Auto / Manual
PIR
Detection
Passive infrared
Detection Range
۱۰m, 110°
Alarm Prompt
White light
White Light Mode
Alert/Lighting
Installation height
Defualt bracket, wall mount, 2.2-3m
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface
N/A
Eelectrical
Power Supply
۱۲V DC ±۳۰%
Power Consumption
Max 4.3W (12V DC, IR on)
Environmental
Operating Conditions
-۱۰°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
* Start up should be done at above -10°C (14°F)
Storage Conditions
-۱۰°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
Ingress Protection &Vandal Resistance
IP67
Construction
Casing
Aluminium (Inner Core) + Plastic (Cover)
Dimensions
Φ۱۱۰mm×۹۶.۱mm(Φ۴.۳۳″×۳.۷۸″)
Net Weight
۰.۲۸kg (0.61lb)
Gross Weight
۰.۴۲kg (0.93lb)
